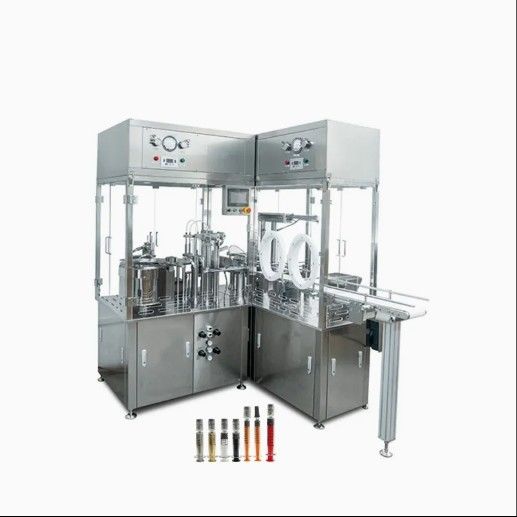

Prefilled Syringe High-Speed Filling System

Prefilled Syringe High-Speed Filling System
Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System Prefilled Syringe High-Speed Filling System

صورة كبيرة :  Prefilled Syringe High-Speed Filling System

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: TRUSTAR/HIJ
إصدار الشهادات: CE
رقم الموديل: HIJ-GZB200
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعة
الأسعار: negotiable
تفاصيل التغليف: الحالات الخشبية التي تستحق البحر
وقت التسليم: ذلك يعتمد. عادة ما يستغرق حوالي 45 يوم عمل.
شروط الدفع: تي/تي
القدرة على العرض: 10 مجموعة/شهر

Prefilled Syringe High-Speed Filling System

وصف
سرعة: 1200-1600 ص / ساعة ضمان المكونات الأساسية: 1 سنة
مواد التعبئة والتغليف: زجاج قوة: 3.5 كيلو واط
مزود الطاقة: 220 فولت ، 50 هرتز وزن الآلة: 350 كجم
حجم الآلة: L1088 × W858 × H1800mm خدمة ما بعد البيع: متاح
إبراز:

prefilled syringe filling machine with warranty,high-speed syringe filling system,prefilled syringe filler for pharmaceuticals

,

high-speed syringe filling system

,

prefilled syringe filler for pharmaceuticals

Prefilled Syringe High-Speed Filling System 0

Function
This machine is suitable for the glass syringe with luer lock and can fill like tooth whitening gel and hyaluronic acid.

1. This machine has compact structure, convenient installation and adjustment, overload clutch protection, fault shutdown
protection safe and reliably.
2. Adopt internationally renowned brand electrical components and servo motor combination. Fully automatic control easy to operate accurately and reliably.
3. Valveless rotary piston pump made of 316L or ceramic material with high precision ensures filling accuracy.


This machine is suitable for the above-mentioned components and assembly, filling and sealing, and clamping of syringes.
The machine uses machine-electric integrated technology, and all its main functions are controlled by servo motors. Accurate and reliable, long service life.
The electric control part uses PLC programmable controller, and the control program is stable and reliable.
The control panel is a touch screen all-in-one machine, with a simple and clear interface.
All detection parts use high-precision sensors for fine monitoring, and stoppage occurs when there is no pipe, no cap, and stops the operation of the machine to ensure that no problems occur.
The work of all pipes and stoppers is automated, which greatly improves efficiency and speed.





Specification
Applicable Materials Liquid and ointment
Applicable Syringe Specifications 0.5,1,2.25,3,5,10ML
Number of Filling Heads 2
Number of Capping Heads 2
Filling Accuracy ≤±1-2%
Production Capacity 1200-1600 p/h
Total Power 3.5KW
Voltage 380V/220V 50-60Hz
Compressed Air 0.55-0.75Mpa 15L/S
Dimensions L1088×W858×H1800mm
Total Weight 350KG






Machine Details

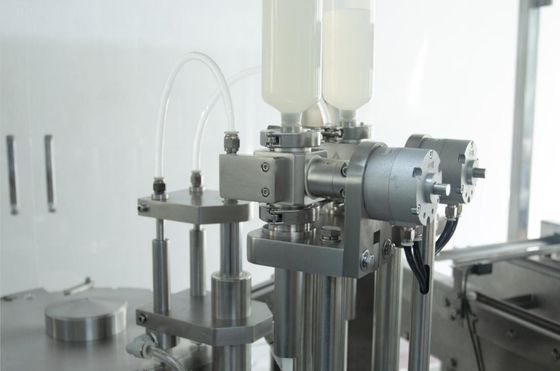

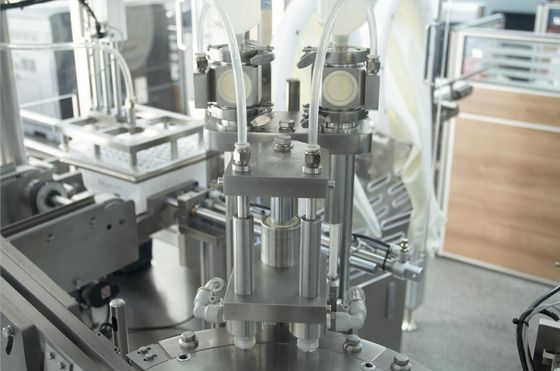

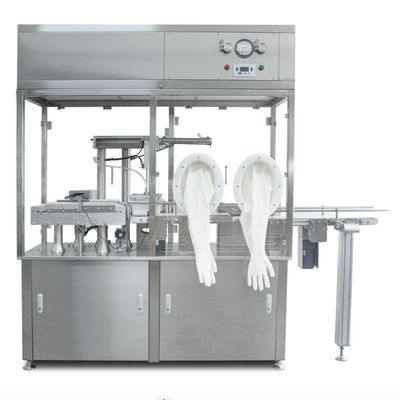

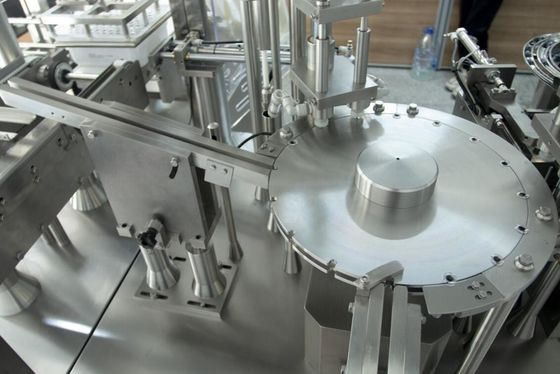

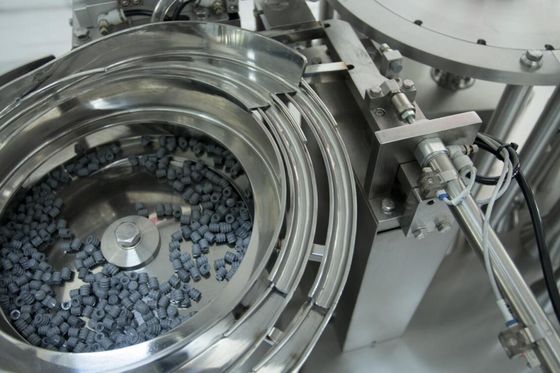

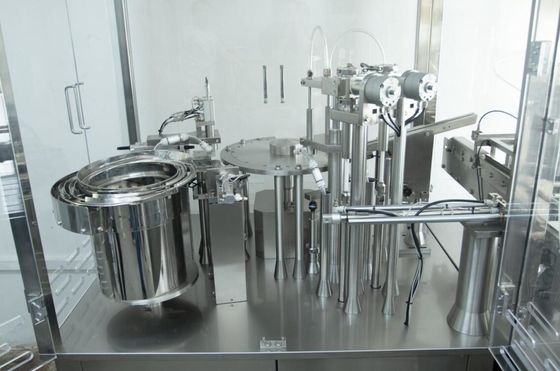

Prefilled Syringe High-Speed Filling System 1Prefilled Syringe High-Speed Filling System 2Prefilled Syringe High-Speed Filling System 3Prefilled Syringe High-Speed Filling System 4Prefilled Syringe High-Speed Filling System 5
Finished Product Display

Prefilled Syringe High-Speed Filling System 6Prefilled Syringe High-Speed Filling System 7

Q&A


1.what's the delivery time?

it's about 30days

2.how many container request for this machine

suggest ship by LCL.

3.Are you a manufacturer?

Yes,We have been packaging machinery over 17 years.

4.what about the payment term ?

Mostly 40%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?

--17 years experience:We have been in making machinery for 17 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
